Lead Acid AGM

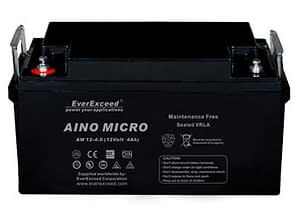

AINO MICRO Range VRLA Battery
Technical Features:
|
Deep Cycle AGM Range VRLA Battery
Technical features:
• Thick positive plate design and high Tin alloy~12 years design life @ 20°C(68°F).
• Valve regulated lead acid battery (VRLA), deep cycle design.
• High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
• Operates at a low internal pressure.
• Heavy duty insert copper terminals for ease of assembly, reduced maintenance and increased safety.
• Advanced lead tin calcium alloy, reduces grid corrosion and promotes long battery life.
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss.
• Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L. 924.
• Multicell design for ease of installation and maintenance.
• Very low self-discharge rate, <3% per month.
• Horizontal or vertical operation.
Application:
• Solar / Photovoltaic | • UPS/EPS |
Standard Range VRLA Battery
Technical features:
• Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F).
• Valve regulated lead acid battery (VRLA).
• High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
• Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation;.
• Heavy duty insert copper terminals for ease of assembly, reduced maintenance and increased safety.
• Advanced high-tin and low-calcium lead alloy, reduces grid corrosion and promotes long battery life.
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss.
• Flame arresting, safety one-way fireproof release venting system for individual cells, recognized per U.L. 924.
• Multicell design for ease of installation and maintenance.
• Very low self-discharge rate <3% / month.
Applications:
| •Telecommunications • Distributed Power • UPS • Data Center • Microwave • Broadband | • Electric Utility |

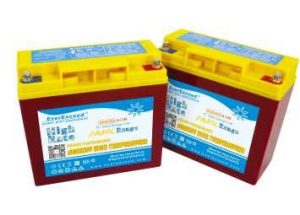

High Rate Range VRLA Battery
Technical features:
• 12 years design life @ 25°C(77°F).
• High energy density designed, specially for high current and high power discharge UPS system.
• Valve regulated lead acid battery (VRLA).
• High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell to cell performance, higher capacity and uniform grid protection.
• Heavy duty threaded copper alloy terminals for ease of assembly, reduced maintenance and increased safety.
• Advanced lead tin calcium alloy, reduces grid corrosion and promotes long battery life.
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss.
• Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L. 924.
• Multicell design for ease of installation and maintenance.
• Multi-cell design for ease of installation and maintenance.
• Horizontal or vertical operation.
• One-way relief valve, Explosion Resistant.
• Patented long life alloy having the lowest calcium levels in the industry minimizies the grid growth, reduces gassing and extends battery life.
• Standard: Reinforced ABS container and cover.
Optional: Flame-retardant reinforced ABS case and cover with an Oxygen Limiting Index of greater than 28%.
Applications:
• Uninterruptible Power Supply (UPS)
• Data Center
• Network Operations Centers
• Banks & Financial Markets
• Alarm and security
• Hospitals
• Power Generation Plants
• Emergency 911 Response Centers

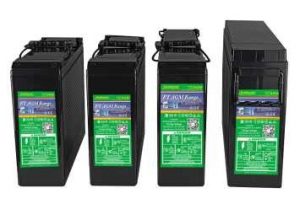

Front Access FT Range VRLA Battery
Technical Features:
• 12 years design life @ 20°C(68°F);
• Virgin pure lead, tin & thick positive plate design for maximum service float life;
• Greater than 99% recombination efficiency;
• Advanced triple stage unique terminal sealing design to ensure leak free operation;
• Operates at a low internal pressure;
• Heavy duty M6 / M8 Female copper plated terminals provide maximum performance and easy installation, reduced maintenance and increased safety;
• Advanced lead, high-tin & low-calcium alloy, reduces grid corrosion and promotes long battery life;
• Flame-retardant reinforced ABS case and cover with an Oxygen Limiting Index of greater than 28%;
• Wide operating temperature range from -40°C (-40°F) to +70°C (+158°F);
• Flame arresting, low pressure safety release venting system for individual cells;
• Multi-cell design for ease of installation and maintenance;
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Applications:
| •Telecommunications • UPS • Distributed Power • Electric Utility • Wireless \ PCS • Switchgear Control Power | • Cellular Radio • Communications • Microwave • Solar/Wind energy • Broadband |

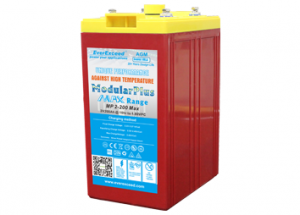

Modular Max Range VRLA Battery
Technical Features:
• 20 years design life in float service @ 20 ℃;
• Valve Regulated Lead Acid (V.R.L.A.)deep cycle design;
• Fully tank formed plates;
• Maintenance free, never needs addition of water;
• Spill-proof and leak-proof;
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection;
• Thick plate design for extra long deep cycle life;
• For use in vertical or horizontal position;
• Each cell has a low pressure safety release venting system;
• Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation;
• Low calcium Lead/Tin alloy plates for efficient gas recombination for long life in both cycling and float applications;
• Low self-discharge rate, <3% per month.
Applications:
| • Telecommunications • Emergency Lighting • Navigation Aids • UPS system • Switchgear • Communications • Grid scale energy storage | • Cellular Radio • Control Systems • Standby Power Supply • Photovoltaic / Solar • Remote/Hybrid Sites • Off-Grid/Renewable • Other cycling applications |

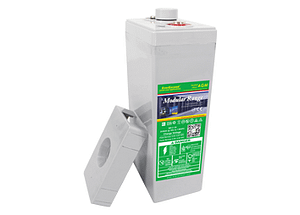

Modular Range VRLA Battery
Technical Features:
• 18 years design life @20℃ (68°F);
• High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell to cell performance, higher capacity and uniform grid protection.
• Thick positive plate plus optimized plate alloy to excellent anti corrosion & ultra long deep cycle life;
• Unique performance against high temperature;
• Non-gassing;
• Never needs addition of water;
• Spill-proof and leak-proof;
• Operates at low internal pressure;
• For use in vertical or horizontal position;
Applications:
• Telecommunications • Emergency Lighting • Navigation Aids • UPS system • Switchgear/Substation | • Cellular Radio • Control Systems • Standby Power Supply • Photovoltaic/Solar • Power Plant |

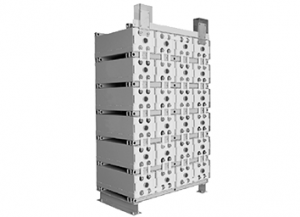

Unilyte Range VRLA Battery
Technical Features:
• 20+ years design life in float service @ 25℃;
• Valve regulated lead acid battery (VRLA).
• Advanced Lead-Calcium-Tin-Silver positive grid alloy provides long life in both float and cycling applications as well as outstanding recovery from deep discharges.
• Modular design for ease of installation and stacking flexibility space saving design for the greatest amount of power in a small footprint.
• Exceeds 1997 UBC Zone 4 seismic requirements for at or below grade installations.
• Advanced micro-porous Absorbed Glass Mat separators for ultra-low float current and greater than 99% recombination efficiency— reduces grid corrosion for a long and water loss, usable super long service life.
• Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation.
• Heavy duty Silver-plated threaded copper alloy terminals for ease of assembly, reduced maintenance and increased safety.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, results in high energy density and low float current.
• Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L. 924.
• Thick plate design for extra long deep cycle life.
Application:
| • Network Operations Centers • Internet Hosting Sites • Banks & Financial Markets • Uninterruptible power systems • Power Plant and Substation | • Switchgear and control • Railroad signal and communication • Telecommunications • Photovoltaics • Alternative energy systems |
Anterior
Siguiente
Lead Acid GEL
Solar Gel Range VRLA Battery
Technical Features:
• Sulfuric acid thixotropic gel electrolyte in solid gel form will not stratify, greatly extend the deep cycle life, Gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Highly porous glass micro-fiber separator, the special design increase the high porosity and anti-corrosion and decrease the internal resistance;
• Virgin pure lead material and thick positive plate technology design for maximum service float life - 12 years design life @25°C(77°F);
• Thick positive plate design & optimized high tin lead calcium plate alloy that ensure plate have excellent corrosion ability;
• Unique performance against high temperature;
• Spill-proof and leak-proof;
• Operates at a low internal pressure;
• Flame-arresting one-way pressure relief vent for safety and long life;
• Rated non-spill able by ICAO, IATA and DOT.
Applications:
• Photovoltaic/ Solar
• Cathodic protection
• Navigation aids
• Telecommunication

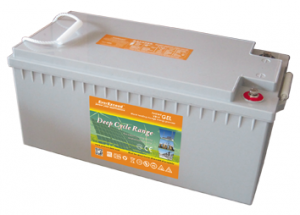

Deep Cycle Gel Range VRLA Battery
Technical features:
• 12 years design life @20°C (68°F);
• Thick positive plate design for maximum service float life;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed GEL technology;
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell to cell performance, higher capacity and uniform grid protection.
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Microporous rubber & corrugated PVC SiO2 separator- the special design increase high porosity & anti-corrosion & decrease internal resistance;
• Electrolyte in solid gel form will not stratify, no equalization charge required;
• Increased durability and deep cycle ability for heavy duty applications;
• Fully tank formed grid lead-calcium-tin plate ensures voltage matching between cells;
• Applicable operating temperature range -40°C (-40°F) to +70°C (+158˚F);
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Unique performance against high temperature.
Applications:
•Telecommunication
• Water Pumping
• Residential
• Lighting
• Cathodic Protection
• Solar/ Wind
• RV/ Marine
• Golf cart
Gellyte Range VRLA Battery
Technical features:
• Exceptional energy storage capacity combined with long life;
• 12 years design life @ 20˚C(68°F)/customized model can be 30 ℃;
• Thick positive plate design for maximum service float life, optimized plate alloy to anti-corrosion;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed GEL technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20˚C (68˚F), very low gassing due to internal gas recombination;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Unique performance against high temperature.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Applications:
• Solar and Wind energy system
• Mobile communicatgion system
• Emergency lighting system
• Radio and Broadcasting station
• Cathodic protection system
• Power plant and Power transformer system
Front Access FT Gel Range VRLA Battery
Technical features:
• Special design comply with telecom 19''/ 23'' cabinet for space limitation;
• Exceptional energy storage capacity combined with long life - BCI Classification;
• Maximum service float life - 15 years design life @ 20˚C(68˚F);
• Designed in accordance with IEC 60896-21/-22;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed GEL technology;
• Microporous rubber & corrugated PVC SiO2 separator, the special design increase the high porosity and anti-corrosion and decrease the internal resistance;
• Electrolyte in solid gel form will not stratify-no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy-duty applications;
• Advanced high tin Pb-Ca-Al alloy plate, excellent anti-corrosion performance and promotes long service life;
• Shelf life up to 2 years at 20˚C (68˚F),
• Wide operating temperature range from -40°C (-40°F) to +70°C (+158˚F);
• Can be used in any orientation. Upright, side or end mounting recommended;
• Durable flame retardant ABS container and cover complies with UL standards;
Applications:
•Telecommunications
• Solar/ Photovoltaic
• UPS
• Wind Generations
• RV/ Marine
• Remote monitoring
• Lighting
• Golf cart
• Cathodic protection

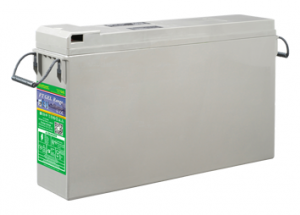

FT Gellyte Range VRLA Battery
Technical Features:
• Special design comply with telecom 19''/ 23'' cabinet for space limitation;
• Highly porous glass micro-fibre seperator with GEL electrolyte;
• Virgin Pure Lead Tin and thick positive plate technology design for maximum service float life - 12 years design life @ 20°C(68°F);
• Thick positive plate plus optimized plate alloy to anti-corrosion;
• Designed in accordance with IEC 60896-21/-22;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed Gellyte technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify-no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy-duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Unique performance against high temperature;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Reinforced ABS case and cover – flame retardant material on request.
• Proprietary Fixed Orifice Plate Pasting technology applyi
• Highly porous glass micro-fibre seperator with GEL electrolyte;
• Virgin Pure Lead Tin and thick positive plate technology design for maximum service float life - 12 years design life @ 20°C(68°F);
• Thick positive plate plus optimized plate alloy to anti-corrosion;
• Designed in accordance with IEC 60896-21/-22;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed Gellyte technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify-no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy-duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Unique performance against high temperature;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Reinforced ABS case and cover – flame retardant material on request.
• Proprietary Fixed Orifice Plate Pasting technology applyi
Applications:
•Telecommunication
• UPS
• Remote Monitoring
• Lighting
• Cathodic Protection
• Solar
• Wind Generation
• RV/Marine
• Golf Cart
Tubular OPzV Range VRLA Battery
Technical Features:
• Tubular positive plates: Robust tubular plates consisting of a lead calcium antimony-free alloy, optimized for high corrosion resistances
• Pasted negative plates: Grid plate construction consisting of lead calcium alloy
• Separators: Micro porous and robust, for electrical separation of the positive and negative plates and optimized for low internal resistance
• Housing: ABS, on request flame retardant ABS according to UL 94 V-0
• One way relief valve: operates at low pressure and fitted with flame arrestor, release gas in case of excess pressure and protects the cell against atmosphere
• Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity
• Post seals: extremely high integrity post seal design to prevent electrolyte leakage and terminal corrosion
• Connectors: flexible fully insulated cable connectors screwed to the terminal with an insulated screw having a probe hole on the top for electrical measurement
• Electrolyte: Gel structure
• Pasted negative plates: Grid plate construction consisting of lead calcium alloy
• Separators: Micro porous and robust, for electrical separation of the positive and negative plates and optimized for low internal resistance
• Housing: ABS, on request flame retardant ABS according to UL 94 V-0
• One way relief valve: operates at low pressure and fitted with flame arrestor, release gas in case of excess pressure and protects the cell against atmosphere
• Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity
• Post seals: extremely high integrity post seal design to prevent electrolyte leakage and terminal corrosion
• Connectors: flexible fully insulated cable connectors screwed to the terminal with an insulated screw having a probe hole on the top for electrical measurement
• Electrolyte: Gel structure
Applications:
•Telecommunication
• Emergency lighting
• Microwave radio system
• Power Generation plants
• Photo voltaics/ Solar

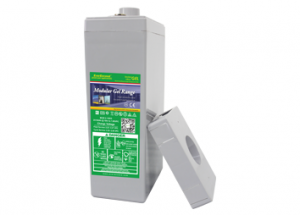

Modular Gel Range VRLA Battery
Technical Features:
• Valve regulated Lead Acid (V.R.L.A.) design;
• Polymer gel electrolyte in solid gel form will not stratify – greatly extend the deep cycle life;
• Gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Micro porous fiber separator with the special design increase the high porosity and anti-corrosion and decrease the internal resistance;
• Virgin Pure Lead and thick positive plate technology design for maximum service float life - 20 years design life @20°C(68°F);
• Proprietary Fixed Orifice Plate Pasting technology
applying active materials on both sides of the grid for
consistent cell-to-cell performance, higher capacity and uniform grid protection.
• Thick positive plate design and optimized high tin lead calcium plate alloy that ensure plate have excellent anti-corrosion ability;
• Unique performance against high temperature;
• Spill-proof and leak-proof;
• Operates at a low internal pressure;
• Each cell has a low pressure safety release venting
system;
• Flame Retardant material V-0 optional.
Applications:
| • Cycling/ Float service • Photovoltaic/ Solar/ Wind energy • Telecommunications • Cathodic Protection • Emergency Lighting • Boats/ Marine/ navigation Aids | • Switchgear |

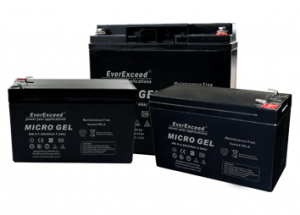

Micro Gel Range VRLA Battery
Technical Features:
• 5~8 years design life @ 20°C(68°F) ambient temperature, 80% remaining capacity;
• Exceptional energy storage capacity combined with long life - BCI Classification;
• Thick positive plate plus optimized plate alloy to anti-corrosion;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed GEL technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Unique performance against high temperature.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
• Exceptional energy storage capacity combined with long life - BCI Classification;
• Thick positive plate plus optimized plate alloy to anti-corrosion;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed GEL technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Unique performance against high temperature.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Applications:
• Solar | • Wind Generation |
Marine Gel Range VRLA Battery
Technnical Features:
• Valve regulated lead acid (VRLA);
• Gelled thixotropic electrolyte;
• Spill-proof and leak-proof;
• Operates at a low internal pressure;
• Very low gassing due to internal gas recombination;
• Flame-arresting one-way pressure-relief vent for safety and long life;
• Rated non-spillable by ICAO, IATA and DOT;
Applications:
| • Buoy Lighting • Safety Lighting • House Power • Control Equipment • Ships’ Batteries • Navigation Beacons • Emergency Power • Other Deep-Discharge • Radio Relay Stations | • Engine Starting • Communication Equipment • Security Systems • Marine Equipment • Emergency Lighting • Trolling Motors • Radar Stations • Supply Systems |
Anterior
Siguiente
Lead Acid FLOODED
Flooded Tubular OPzS Range Battery
Technical Features:
• 20 years design life @20°C (68°F);
• Robust tubular positive plates design consisting of a lead antimony alloy, optimized for high corrosion resistances;
• EverExceed™ grid plate construction consisting of low antimony with long life expander material;
• 9.7mm thickness positive plate (most thick in the industry) ensure the plate’s excellent strength and super cycle life;
• Special low resistance PVC-SiO2 micro-porous separator imported from Europe ensures excellent charge and discharge performance;
• Low maintenance due to reduced antimony in the alloy & high electrolyte reserve;
• 1500 life cycles @ 80% DOD;
• Extremely high integrity post seal design to prevent electrolyte leakage & terminal corrosion;
• Applicable operating temperature range -40°C (-40°F) to +70°C (+158°F).
Applications:
• Photovoltaics/Solar
• Wind Generation
• Microwave radio systems
• Telecommunications
• Power generation plants
• Emergency lighting
Flooded OGI Range Battery
Technical features:
• Very high operational reliability under rough operating conditions;
• Low maintenance due to optimized alloy and high electrolyte reserve;
• Nominal capacity 200-3500 AH;
• 20+ years at 20°C (68°F) in float service (80% remaining capacity from C10);
• Specially designed for cyclic operation ;
• Low gassing due to optimized alloy (EN 50272-2);
• Optimized plate design produces increased capacities;
• Completely recyclable.
Applications:
• Telecommunications
• Emergency lighting
• Railway systems
• Power generation plants
• Photovoltaic/cyclic
• UPS systems
• Alarm security systems

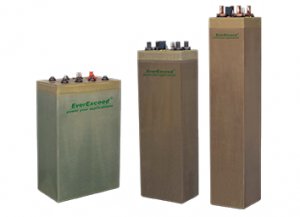

Submarine Range Lead Acid Battery
Technical features:
• Very low H2 evolution during operation.
• Internal cooling system with great efficiency.
• Container and lid are manufactured in house with a very sophisticated method. The container walls are thinner, which gives the container less weight and more volume, thus more active material for increased performance.
• The pole bridges are made of electrolyte copper to increase conductivity.
• The cells exhibit a very low operation temperature during activation and charging of the battery.
• The battery has a short activation time.
• The plates of the cells have excellent dry charge conditions.
• The improved agitation system inside the cell protects the battery from sulphation problems and increases the electrical performance.
• The battery exhibits an optimum performance at low (patrolling) and high rate (monoevring) operation.
• Each cell is equipped with an easy maintenance service plug with an integrated ceramic filter; the ceramic filter is specially designed with improved anti explosive capability.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Anterior
Siguiente
Lead Acid New Generation
Deep Cycle Max Range VRLA Battery
Technical Features:
• Thick optimized positive plate design for maximum service float life - 12 years design life @ 20°C(68°F);
• Nano-Carbon enhanced for improved durability;
• Valve regulated lead acid battery (VRLA);
• Extreme temperature High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency;
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell to cell performance, higher density & capacity and uniform grid protection;
• Advanced deep cycle high tin lead alloy, reduces grid corrosion and promotes long battery life;
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss;
• Flame arresting, low pressure safety release venting system for individual cells;
• Reinforced special high temperature resistant ABS container and cover adopted;
• One-way relief valve, Explosion Resistant;
• Double floating life more than traditional VRLA battery @35°C;
• Wide operating temperature range: -40°C to +80°C;
• Better performance for high / low outdoor applications, extended service life for non-temperature controlled outdoor enclosures;
Applications:
| • Solar / photovoltaic • Wind generation • Power wheelchair • Microwave • Broadband | • Water pumping • Communications • Cathodic Protection • Signaling • Golf cart |
High Rate Max VRLA Battery
Technical features:
• High density optimized positive plate design for maximum service float life - 15 years design life @ 20°C(68°F);
• Nano-Carbon enhanced for improved durability;
• Advanced corrosion resistant lead tin low calcium alloy, ensure the best performance for continuous operation up to 35°C;
• Extreme temperature High-Compression Absorbed Glas Mat technology (AGM) for greater than 99% recombination efficiency;
• Advanced triple stage unique terminal sealing design to ensure leak free operation, one way relief valve, explosion resistant;
• Advanced deep cycle high tin lead alloy, reduces grid corrosion and promotes long battery life;
• Heavy duty M6/M8 female copper plated terminals provide maximum performance and easy installation, reduce maintenance and increase safety;
• Flame arresting, low pressure safety release venting system for individual cells;
• Reinforced special high temperature resistant ABS container and cover adopted;
• Wide operating temperature range: -40°C to +80°C;
• Better high / low performance for outdoor applications, extended service life for non-temperature controlled outdoor enclosures.
Applications:
• Uninterruptable power supply (UPS)
• Switchgear
• Emergency light
• Overhead cranes
• Telecom
• Alarm and security
• Industrial DC power

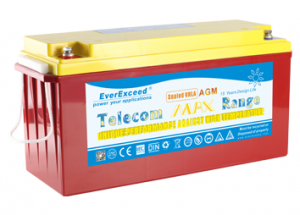

Telecom Max Range VRLA Battery
Technical features:
● Thick optimized positive plate design for maximum service float life - 15 years design life @ 20°C(68°F).
● Nano-Carbon enhanced for improved durability.
● Valve regulated lead acid battery (VRLA).
● Extreme temperature High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
● Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher density & capacity and uniform grid protection.
● Advanced deep cycle high tin lead alloy, reduces grid corrosion and promotes long battery life.
● Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss.
● Flame arresting, low pressure safety release venting system for individual cells.
● Reinforced special high temperature resistant ABS container and cover adopted.
● One-way relief valve, Explosion Resistant.
● Wide operating temperature range: -40°C to +80°C;
● Better performance for high / low outdoor applications, extended service life for non-temperature controlled outdoor enclosures.
Applications:
● Telecom
● Distributed Power
● UPS
● Cellular
● Microwave
● Solar
● Switch gear
FT Max Range VRLA Battery
Technical Features:
• Thick optimized positive plate design for maximum service float life - 15 years design life @ 20°C(68°F);
• Nano-Carbon enhanced for improved durability;
• Valve regulated lead acid battery (VRLA);
• Extreme temperature High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency;
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher density & capacity and uniform grid protection;
• Advanced deep cycle high tin lead alloy, reduces grid corrosion and promotes long battery life;
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss;
• Flame arresting, low pressure safety release venting system for individual cells;
• Reinforced special high temperature resistant ABS container and cover adopted;
• One-way relief valve, Explosion Resistant;
• Wide operating temperature range: -40°C to +80°C;
• Better performance for high / low outdoor applications, extended service life for non-temperature controlled outdoor enclosures.
Applications:
• Distributed power
• Cellular radio
• Microwave
• Broadband
• Telecom
• UPS
• Switchgear
• Communications
Modular Plus Max Range VRLA Battery
Technical Features:
● 20 years design life @35°C (95°F);
● Double floating life more than traditional VRLA battery @35°C;
● Advanced corrosion resistant lead, high tin, low calcium alloy, ensure the best performance for continuous operation up to 35°C;
● Optimized high compression Absorbed Glass Mat materials significantly enhance performance & reliability; greater than 99% recombination efficiency
● Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection;
● Advanced triple stage unique terminal sealing design to ensure leak free operation;
● Heavy duty M8 female copper plated terminals provide maximum performance& easy installation, reduce maintenance & increase safety;
● Anti-high temperature casting materials; Standard: Reinforced anti-high temperature ABS container & cover;
● Optional: Flame retardant
● Wide operating temperature range -40°C to +80°C;
● Greatly reduce operational cost ( more than 60% less cooling consumption) ;
● Greatly reduce CO2 emission, 30% reduction;
● Excellent deep cycling performance;
Applications:
● Telecommunications
● Cellular Radio
● Emergency lighting
● UPS system
● Control systems
● Nevigation aids
● Standby power supply
● Photovoltaic / Solar
● Switchgear
Anterior
Siguiente
NiCd Batteries
EBL Pocket Plate Range NiCd Battery
Technical Features:
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• The discharge time for 3h to 100h;
• Designed for applications where the battery is required to provide:
-a reliable source of energy over relatively long discharge periods
-a current that is relatively low in comparison with the total stored energy
-discharges are generally infrequent
Applications:
• Telecommunication, back-up power, railway lighting power and other emergency back-up power supplies.

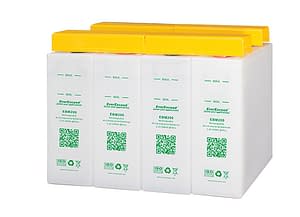

EBM Pocket Plate Range NiCd Battery
Technical features:
• operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• The discharge time for 30min to 3h;
• Designed for applications where the batteries are usually required to sustain:
- electrical loads for between 30 minutes to three hours
- "mixed" loads involving a mixture of high and low discharge rates
- frequent or infrequent discharges
Applications:
• Railway DC power supply, UPS switch transition
EBH Pocket Plate Range NiCd Battery
Technical features:
• Excellent high rate discharge performance;
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• With the low discharge rate at 3.5ItA～7ItA;
• The discharge time for less than 0.5 h;
• Designed for applications demanding :
- a relatively high current over short periods - usually less than 30 min duration
- applications can have frequent or infrequent discharges
Applications:
• UPS switch transition, railway emergency back-up and start-up power supply
SEBL Sealed Low Maintenance Pocket Plate Range NiCd Battery
Technical features:
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• The discharge time for 3h to 100h;
• Designed for applications where the battery is required to provide:
- a reliable source of energy over relatively long discharge periods
- a current that is relatively low in comparison with the total stored energy
- discharges are generally infrequent
Applications:
• Telecommunication, power plant, substation back-up power, railway lighting power and other emergency back-up power supplies.
SEBM Sealed Low Maintenance Pocket Plate Range NiCd Battery
Technical Features:
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• The discharge time for 30min to 3h;
• Designed for applications where the batteries are usually required to sustain:
- electrical loads for between 30 minutes to three hours
- "mixed" loads involving a mixture of high and low discharge rates
- frequent or infrequent discharges
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• The discharge time for 30min to 3h;
• Designed for applications where the batteries are usually required to sustain:
- electrical loads for between 30 minutes to three hours
- "mixed" loads involving a mixture of high and low discharge rates
- frequent or infrequent discharges
Applications:
• Railway DC power supply, UPS switch transition, power plant, substation, and other back up power supply.
SEBH Sealed Low Maintenance Pocket Plate Range NiCd Battery
Technical Features:
• Excellent high rate discharge performance;
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• With the low discharge rate at 3.5ItA～7ItA;
• The discharge time for less than 0.5 h;
• Designed for applications demanding :
- a relatively high current over short periods - usually less than 30 min duration
- applications can have frequent or infrequent discharges
Applications:
• Diesel generator starting, utilities, power plant, substation, oil and gas, industrial Medical, airports, military, railway emergency back-up and start-up power supply.
SPL Ultra-Low Maintenance Gas Recombination Range NiCd Battery
Technical Features:
• Advanced gas recombination technology and process
• No need to replace electrolyte during service life
• Gas recombination efficiency: 85%～95%; Reduce 90% water consumption
• Long service life: more than 20 years under intelligent use, never lose efficiency during service life
• Wide operation temperature range: -50℃～70℃
• Excellent resistance to mechanical and electrical abuse,
• Good adaptability under harsh environmental conditions;
• No sudden death risk
Applications:
• Offshore oil and gas, emergency lighting, fire and security, telecoms, utilities, photovoltaics and other back-up power supply for infrastructure.
SPM Ultra-Low Maintenance Gas Recombination Range NiCd Battery
Technical Features:
• Advanced gas recombination technology and process;
• No need to replace electrolyte during service life;
• Gas recombination efficiency: 85%～95%; Reduce 90% water consumption;
• Long service life: more than 20 years under intelligent use, never lose efficiency during service life;
• Wide operation temperature range: -50℃～70℃;
• Excellent resistance to mechanical and electrical abuse,
• Good adaptability under harsh environmental conditions;
• No sudden death risk;
Applications:
• Offshore oil and gas, emergency lighting, fire and security, telecoms, utilities, photovoltaics, hybrid load with peak need, mass transit, power utility.
XHP Sintered Plate Range NiCd Battery
Technnical Features:
• Excellent 10+C high rate discharge performance;
• Wide operating temperature range: -40℃～70℃;
• High reliability without sudden death;
• Lower weight and reduced volume;
• Excellent resistance performance of electric misoperation (over-charge and over-discharge);
• Resistance to mechanical and electrical abuse;
• Lower maintenance cost and replacement cost;
• High mechanical strength;
• Light weight, compact volume;
XHP Sintered Plate Range Gen Start NiCd Battery
Key Features:
• 20+ years design life;
• Proven VARTA sintered plate electrode;
• Trouble-free long cycle life technology;
• 3C charging current;
• Over 20C cranking current;
• Wide operating temperature : -40°C to +60°C;
• High tolerance to rough handling and mechanical abuse;
• No risk of sudden death due to the chemistry and the cell structure;
• Generous electrolyte reserve for long maintenance intervals;
• Clear cell case for easy electrolyte level inspection;
• Custom cell dimension available
Application:
• Diesel generator starting
• Engine starting
• UPS
• Rolling stock
• Automatic guided vehicles (AGV)
• Trucks etc
Anterior
Siguiente
Lithium Batteries
Telecom Lithium Battery
Technical Features:
• 15+ years of design life, 19” rack mounting module design;
• Direct Lead Acid Battery (AGM/GEL) replacement;
• Faster charge, 1 hour of charging can provide up to 90% charge;
• High energy density and conversion efficiency;
• Excellent high and low temperature operation;
• High cycle times and longer service life of >3000 cycles @100% DOD ;
• Can support paralleling use for increased requirement;
• Safety in use: EverExceed TopSure™ BMS inside, No explosion, No fire;
• Intelligent automatic protection for overcharge;
• Ultra low self discharge rate<1.5%/month;
• No maintenance required through out the lifetime;
• Great power saver;
• Superior DOD (100%) over lead acid batteries;
• RS485 and RS232 communication output
• BMS with internal cell balancing function to ensure long service life.
• Excellent high temperature performance;
Applications:
• Base transceiver station
• Wireline outside plants
• Central office
• Communication equipment
• Uninterruptible power supplies
• Telecommunication systems
• Electronic cash registers
• Microprocessor based office machine
• Other standby power supplies
Rack Mounted Solar Lithium Battery
Technical features:
● High cycle life and deep cycle ability
≥5000 cycles@80% DOD @ (+25°C/+77°F).
● Intelligent monitoring
The monitoring unit checks the charging and discharging current,voltage, battery surface temperature and ambient temperature automatically.
● Lightweight, high energy density standby power
The EverExceed lithium batteries, due to their excellent properties,are the optimal energy storage solution where limited space and weight are important factors.
● Safety
As EverExceed LiFePO4 batteries adopt the most advanced lithium iron technology, there is no risk of explosion and fire.It is designed for residential and commercial applications with absolute safety.
● Intelligent battery management system
The battery system adopts a special BMS,high performance battery management module which is featured with voltage,current and temperature protection and a preferable communication between the battery system and the host.
Advantages:
● Optimized for photovoltaic applications, using high temperature and high cycle life active materials;
● Increased energy in given space;
● Parallel connection available for flexible system capacity extension;
● High operational reliability;
● Optimized supervision strategy through remote control/diagnostic;
● Very long life time;
● Preventive but not premature replacement at end of life;
● Maintenance free throughout lifetime;
● Compatible with most of the available hybrid inverters;
● Compact and fashionable design fits in your sweet home environment;
● Conforms to safety standards of IEC62133, CE, UN38.3;
Applications:
● Solar energy storage;
● Wind energy storage;
Wall Mounted Solar Lithium Battery
Technical features:
● High cycle life and deep cycle ability
≥5000 cycles@80% DOD @ (+25°C/+77°F).
● Intelligent monitoring
The monitoring unit checks the charging and discharging current,voltage, battery surface temperature and ambient temperature automatically.
● ightweight, high energy density standby power
The EverExceed lithium batteries, due to their excellent properties,are the optimal energy storage solution where limited space and weight are important factors.
● Safety
As EverExceed LiFePO4 batteries adopt the most advanced lithium iron technology, there is no risk of explosion and fire.It is designed for residential and commercial applications with absolute safety.
● Intelligent battery management system
The battery system adopts a special BMS,high performance battery management module which is featured with voltage,current and temperature protection and a preferable communication between the battery system and the host.
Advantages:
● Optimized for photovoltaic applications, using high temperature and high cycle life active materials;
● Increased energy in given space;
● Parallel connection available for flexible system capacity extension;
● High operational reliability;
● Optimized supervision strategy through remote control/diagnostic;
● Very long life time;
● Preventive but not premature replacement at end of life;
● Maintenance free throughout lifetime;
● Compatible with most of the available hybrid inverters;
● Compact and fashionable design fits in your sweet home environment;
● Conforms to safety standards of IEC62133, CE, UN38.3;
Applications:
● Solar energy storage;
● Wind energy storage;
UPS Lithium Battery
Technical features:
• Capacity rating:
Batteries can be designed as 12V to 800V as per customer requirement.
• Fast Charging:
Superior fast charging capability, 1hr charging to 90% can be provided.
• User-friendly BMS:
Integrated Advanced BMS with smart user friendly features for better UPS battery management.
• Long warranty:
2 years warranty, 5+ years optional, life expectancy up to a lot more.
• Lighter Battery weight:
More lighter than equivalent lead acid batteries.
• Expansion capability:
It has Configuration flexibility, support parallel connection expansion.
• Easy Implementation:
No need to assign extra man-power to install.
• Ultra long life cycle:
Extremely longer life cycles than lead acid batteries, (≥3000 @80% DOD).DOD supports up to 100%.
• Maintenance free:
No need for maintenance saves OPEX for user.
• Green Energy:
Non-toxic, no harmful heavy metals used that can harm the environment
Lithium Battery For Solar Street Light System
Technical Features:
• High cycle times and longer service life of ≧3000 cycles @100% DOD;
• Superior DOD (100%) over lead acid batteries;
• 30% weight than equivalent lead acid batteries make it easy to handle;
• Faster charge, 1 hour of charging can provide upto 90% charge;
• High energy density and conversion efficiency;
• Environment friendly, without any heavy metals;
• Great high temperature performance;
• Safety in use: EverExceed TopSure™ BMS inside, No explosion, No fire;
• Ultra low self discharge rate<1.5%/month;
• No maintenance required throughout the lifetime;
• Great power saver;
• No acid splash and carbon mono-oxide emission so no need expensive battery maintenance room.

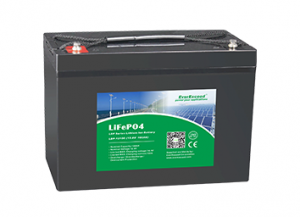

LDP Series Lithium Battery
Advanced Features:
• Direct Lead Acid Battery (AGM/GEL) replacement for 10AH to 300AH.
• Faster charge
• High energy density and conversion efficiency
• Environment friendly, without any heavy metals
• High cycle times and long service life
• Good high temperature performance
• Safety in use：No explosion, No fire.
• Ultra low self discharge rate <1.5%/month
Applications:
• Wheelchair, sweeper ,electric vehicle,robot
• Solar/wind energy storage system
• UPS Backup power
• Telecommunication
• Medical equipment
• Lighting
Medical Equipment Lithium Battery
Advanced Features:
• Ultra long life cycle:
Extremely longer life cycles than lead acid batteries, (≥3000 @100% DOD).
• Wide operational temperature range:
Wide operational temperature range of -20 °C (4℉) and +65 °C (149℉) makes it superior than any lead acid batteries.
• Lighter Battery weight:
Lighter than equivalent lead acid batteries.
• Long shelf life:
It has long shelf life up to 2 years without any fresh charging.
• Safety:
Advanced BMS ensures safety from over voltage, over current, over charging, over discharging, over temperature etc.
• Green Energy:
Non-toxic, no harmful heavy metals used that can harm the environment. Odorless and looks clean.
• Fast Charging:
Superior fast charging capability, 1hr charging to 90% can be provided.
• Flexible configuration:
It has configuration flexibility, support parallel connection expansion. Easy to install so no need for additional man power cost.
Anterior
Siguiente

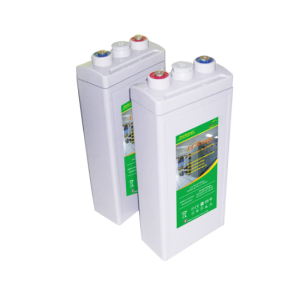

Lead Carbon Battery
2V LC Range- Lead Carbon Battery
Technical Advantages:
● 20+ years design life;
● Unique super lead carbon technology, deep cycle battery design;
● Negative electrode with highly conductive carbon material, reduced sulfation of negative plate;
● Outstanding PSOC (partial state of charge ) cycle performance;
● 5~8 times cycle life between 30 and 70 percent state-of-charge compared with normal VRLA, without fear of becoming sulfated;
● Superior deep cycle life by using EverExceed unique long-life technology and design, more than 1500 cycles @ 80% DOD @ 25℃;
● Excellent recharge acceptance performance, recharge fast after deep discharge;
● Excellent quick charge performance, reduce charging time by 30%~50%;
● Optimized high-compression Absorbed Glass Mat materials significantly enhance performance and reliability, greater than 99% recombination efficiency;
● Wide operating temperature range: -40°C to +80°C;
● Horizontal installation position for less space, easy installation & maintenance;
● Low self-discharge rate<3%/month;
● Manufactured with 95% recycled materials and are fully recyclable at the end of service;
Application:
● Solar energy storage system
● Wind energy storage system
● Smart power grids and micro-grids system
● Frequency regulation and load following service
● Distributed energy storage system
● Generator and battery hybrid energy system
● Telecommunications
● Power plant and substation
● Emergency lighting system
● UPS
● Data Center
● Navigation Aids
12V LC Range- Lead Carbon Battery
Technical Advantages:
● 15+ years design life;
● Unique super lead carbon technology, deep cycle battery design;
● Negative electrode with highly conductive carbon material,reduced sulfation of negative plate;
● Outstanding PSOC (partial state of charge ) cycle performance;
● 5~8 times cycle life between 30 and 70 percent state-of-charge compared with normal VRLA, without fear of becoming sulfated;
● Superior deep cycle life by using EverExceed unique long-life technology and design, more than 1000 cycles @ 80% DOD @ 25℃;
● Excellent recharge acceptance performance, recharge fast after deep discharge;
● Excellent quick charge performance, reduce charging time by 30%~50%;
● Optimized high-compression Absorbed Glass Mat materials significantly enhance performance and reliability, greater than 99% recombination efficiency;
● Wide operating temperature range: -40°C to +80°C;
● Horizontal installation position for less space, easy installation & maintenance;
● Low self-discharge rate <3%/month;
● Manufactured with 95% recycled materials and are fully recyclable at the end of service;
| Applications: | |
| ● Solar energy storage system ● Wind energy storage system ● Smart power grids and micro-grids system ● Peak shifting of electrical power system ● Frequency regulation and load following service ● Distributed energy storage system | ● Generator and battery hybrid energy system ● Telecommunications ● Power plant and substation ● Emergency lighting system ● UPS ● Data Center |
Nickel Iron Batteries

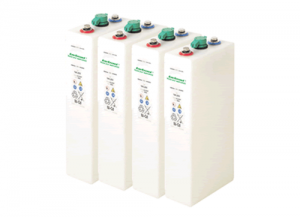

Solar PV Ni-Fe Cell EVTN Series Alkaline Rechargeable Battery
Technical Features:
• Long cycle life (maximum service life can reach 30 years or more, if operated correctly) ;
• Environmental friendliness (no lead, cadmium, or acid. highly recyclable) ;
• High safety with little possibility of burning or thermal runaway ;
• Wide operating temperature range;
• Low maintenance;
• High resistance to mechanical and electrical abuse;
• Low transportation and installation cost;
Applications:
• Commercial and Residential Buildings
• Railway and Light Trains
• Navigation Aids
• Utilites
• Oil and Gas Fields
• Telecommunication Systems
Anterior
Siguiente
Military NiCd Battery

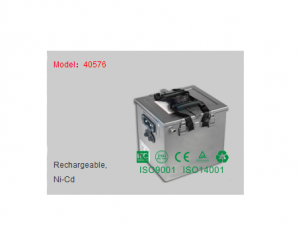

Military Aircraft (Including UAV) NiCd Battery
Our solutions for fighter jets, transport aircraft, attack and surveillance helicopters and unmanned aerial vehicles suit to the most stringent requirements of military aviation, to withstand harsh and extreme environment conditions including aerobatic compliance for example. EverExceed Ni-Cd and Li-ion battery systems are on-board most recognized OEM and Air Force aircraft.

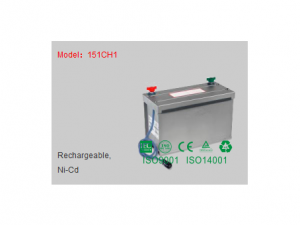

Rotorcraft And Business Aviation NiCd Battery
The battery is designed to withstand rotorcraft extreme vibrations and temperature conditions, harsh direct turbine or APU starting curves, as well as a very high robustness and reliability for business aviation operations in remote locations.
